PMF Bulkhead Female Straight — Technical Guide & Application Notes

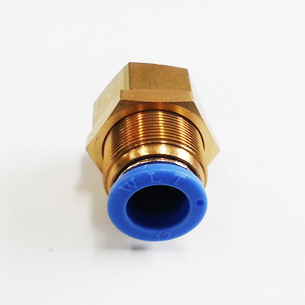

The PMF Bulkhead Female Straight is a one-touch push-in pneumatic bulkhead fitting engineered for fast, reliable tube connections in compressed air systems. Designed as a panel-mountable, straight female push-to-connect fitting, PMF provides secure, tool-free installation and rapid release of tubing for maintenance and reconfiguration. The PC hex type incorporates internal and external hex surfaces to simplify assembly in confined installations where access is limited. This article provides a comprehensive, technical overview of the PMF Bulkhead Female Straight — including specifications, materials and build quality, installation and maintenance guidance, use cases, comparisons to alternative fittings, and practical engineering recommendations for system integration.

Introduction

Push-to-connect bulkhead fittings have become a standard component in pneumatic system design because they dramatically reduce assembly time and minimize leak points compared with traditional threaded or compression fittings. The PMF Bulkhead Female Straight is targeted at technical audiences specifying compressed air distribution for manufacturing equipment, laboratory rigs, automation panels, and OEM assemblies. It addresses common engineering requirements: rapid assembly, compact panel mounting, reliable sealing, repeatable disconnect/reconnect cycles, and compability with both metric and inch tubing standards.

This document is intended for engineers, maintenance technicians, procurement specialists, and system integrators who need a deep technical understanding of the PMF Bulkhead Female Straight’s mechanical characteristics, limitations, and practical integration tips.

Technical Overview

The PMF Bulkhead Female Straight is a one-touch push-in bulkhead fitting for compressed air. Its primary function is to provide a secure, push-fit connection between a length of flexible pneumatic tubing and a threaded panel or manifold port. The “one-touch” push-to-connect mechanism facilitates tool-free insertion of the tube and rapid release by depressing the outer sleeve (collet) and pulling the tubing free. The bulkhead form factor enables the fitting to be mounted through a panel or enclosure so that the tubing connection is accessible on one side while the threaded portion secures into the panel or manifold on the other.

Key functional attributes:

• One-touch push-in connection for fast assembly and disassembly.
• Bulkhead design for panel mounting, enabling pass-through connections with sealed thread engagement.
• PC hex variant for improved wrenching in confined spaces — internal and external hex surfaces allow accessible torque application from either side.
• Available for both metric and inch tubing sizes; supports multiple thread standards (R/PT for metric tube versions and NPT for inch tube versions).
• Seal-coated threads (factory-applied sealant) for simplified panel mounting and leak mitigation without additional thread tape in typical installations.

Applications and Typical Use Cases

The PMF Bulkhead Female Straight is intended strictly for compressed air systems. Typical application domains include:

• Factory automation: Pneumatic actuators, blow-off systems, air supply to valves and sensors where quick rework and minimal downtime are required.
• Machine enclosures and control panels: Panel pass-throughs that require a sealed pneumatic connection with easy field servicing.
• OEM equipment: Embedded pneumatic distribution within machines where compact bulkhead mounting and vibration resistance are needed.
• Prototyping and test rigs: Systems that undergo frequent configuration changes and benefit from tool-free tubing access.
• Laboratory and bench setups: Low-pressure compressed air distribution with easy tube swaps for instrumentation and pneumatic fixtures.

Specifications and Dimensions

The following technical tables present the size, weight, thread options, performance limits, and typical dimensional attributes for the PMF Bulkhead Female Straight family. Values below are representative of the PMF product family; always consult the manufacturer’s datasheet for the specific model selected.

Characteristic	Value / Range	Notes
Intended fluid	Compressed air (clean, dry, filtered)	Not rated for oils, fuels, or aggressive solvents
Operating pressure	0–150 PSI (0–9.9 kgf/cm² / 0–990 kPa)	Maximum working pressure; design with safety margin
Vacuum capability	Down to -29.5 in Hg (-750 mm Hg)	Limited vacuum applications supported
Temperature range	32–140°F (0–60°C)	Dependent on seal material (NBR) and body polymer
Tubing sizes (metric)	4, 6, 8, 10, 12, 16 mm (outer diameter)	Nominal OD for flexible pneumatic tubing
Tubing sizes (inch)	5/32″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″	Nominal OD for inch tubing
Thread standards	R/PT (metric tube models) / NPT (inch tube models)	Thread type chosen according to model code
Thread seal	Factory-applied sealant (thread coating)	Reduces requirement for assembly sealant; reapply if re-installing
Release method	Push collet down and pull tubing	1–2 second typical operation
Collet retention teeth	Stainless steel spring teeth	Corrosion resistant for reliable holding force

Example Dimensional Table (Representative)

The table below provides representative dimensions for common PMF models. Use these for preliminary panel cutout and clearance planning; verify with the actual part drawing for production.

Model Code	Tubing OD	Thread	Thread Outer Dia. (mm)	Thread Pitch / TPI	Panel Hole Ø (mm)	Overall Length (mm)	Hex Flats (mm)	Approx. Mass (g)
PMF 04-1/8	4 mm	R 1/8 (BSPT equivalent)	9.7	~28 tpi	10.5	22	11	4
PMF 06-1/8	6 mm	R 1/8	9.7	~28 tpi	10.5	24	11	5
PMF 08-1/8	8 mm	R 1/8	9.7	~28 tpi	10.5	26	11	6
PMF 12-1/4	12 mm	R 1/4	13.5	~19 tpi	14.0	30	14	10
PMF 5/32-N1	5/32″	1/8″ NPT	9.7	~27 TPI	10.5	22	11	4
PMF 1/2-N4	1/2″	1/2″ NPT	21.3	~14 TPI	22.5	36	19	18

Materials and Build Quality

Selecting materials for pneumatic fittings requires balancing mechanical strength, chemical compatibility (with lubricants and ambient contaminants), thermal performance, and manufacturing cost. The PMF Bulkhead Female Straight is engineered using a combination of high-performance polymers and corrosion-resistant hardware to meet these demands:

• Body (hex / bulkhead portion): Engineering thermoplastic (polycarbonate (PC) or glass-filled polybutylene terephthalate (PBT) depending on model). The PC hex variant uses polycarbonate in the hex areas to provide dimensional stability, impact resistance, and good surface finish for wrenching surfaces. Polymer construction reduces weight and prevents galvanic corrosion with aluminum or stainless housings.
• Collet: High-strength acetal (POM) or equivalent to provide low friction, dimensional accuracy, and good fatigue resistance for repeat push-pull cycles.
• Collet teeth / grippers: Stainless steel retaining teeth to resist corrosion and provide consistent gripping force on tubing OD without excessive scoring.
• Seals / O-rings: Nitrile rubber (NBR/Buna-N) — chosen for wide compatibility with compressed air and standard operating temperature range (0–60°C). NBR offers low cost and reliable sealing for dry or slightly lubricated air. In higher-temperature or chemical-exposure environments, FKM (Viton) variants may be requested.
• Thread coating / sealant: Factory-applied sealant (commonly anaerobic or PTFE-based coating) on the threaded portion to reduce initial assembly leaks. This also simplifies installation by avoiding the immediate need for thread tape.

Quality control focuses on dimensional tolerances for the collet bore, the concentricity of the tube guide, and seal compression characteristics, all of which affect leakage rates and retention force. Typical production inspections include leak checks at specified pressures, pull-out force testing for each tube size, and visual inspection of the collet teeth.

Key Features

The PMF Bulkhead Female Straight offers several technical features that are important to systems engineering and maintenance planning:

• One-touch push-fit connection: Fast insertion and quick release without tools. Reduces assembly and service times substantially.
• Bulkhead mounting: Secure pass-through connection for panels and enclosures with threaded engagement on the rear side. Thread sealant reduces installation complexity.
• PC hex design: Both internal and external hex surfaces for tightening in confined spaces, enabling assembly from either side of the panel if necessary.
• Dual-standard tube support: Models available for common metric and imperial tubing diameters to support global procurement and design standards.
• Wide pressure and vacuum capability: 0–150 PSI operating range and nearly full vacuum capability allow flexible deployment in many pneumatic circuits.
• Reliable sealing technology: NBR seals and stainless collet teeth combine to offer repeatable sealing and retention over many cycles.
• Thread options for system compatibility: R/PT variants for BSPT/R threads and NPT variants for tapered NPT threads used in North American systems.

Design Considerations and Integration Guidelines

When specifying and integrating PMF Bulkhead Female Straight fittings, engineers should consider the following points to ensure reliable operation:

1. Tubing selection: Use flexible pneumatic tubing of the specified outer diameter and material (commonly polyurethane (PU), nylon (PA), or polyethylene). The tubing OD tolerance and roundness influence retention force and leak performance. For best results, use tubing rated for compressed air and compatible with NBR seals.
2. Panel preparation: Ensure the panel hole is drilled to the recommended diameter and the panel thickness is within the allowable range for the bulkhead thread length. Deburr the hole to prevent sharp edges from nicking the thread sealant.
3. Thread engagement and torque: Tighten the threaded portion sufficiently to compress the thread sealant and achieve a leak-tight installation. For polymer-body fittings with small thread sizes (1/8″ or 1/4″), hand-tight plus 1/4 to 1 turn with a wrench is often appropriate. Do not exceed recommended torque values for the specific thread size — over-tightening may crack polymer bodies.
4. Accessible wrenching: Use the PC hex surfaces for wrenching in confined geometries. Apply torque on the hex flats (external) or use an internal hex tool if external access is restricted.
5. Pressure and temperature margins: Design systems with safety margins (e.g., operate below 80% of maximum rated pressure) and avoid sustained operation near the upper temperature limit of 60°C for standard NBR seals.
6. Vibration and flex considerations: Avoid routing tubing to introduce cantilevered stress on the fitting. Use clamps or routing supports to minimize vibration-induced loosening or wear at the collet.
7. Orientation: While the straight bulkhead version can be mounted at any orientation, consider gravity and drip lines (if condensate is present) and route tubing to minimize dirt ingress into the collet.

Performance Metrics

Key performance attributes engineers should quantify during system design or validation:

• Pull-out force: Typical retention force for each tubing size is validated in production; expect increasing pull-out values with larger tube ODs. For example, a 4–6 mm tube may exhibit pull-out forces on the order of 20–50 N while a 12–16 mm tube may show 80–200 N, depending on tubing hardness and collet geometry.
• Leak rate: When properly installed, fittings should exhibit negligible leak at operating pressures (commonly <10 sccm helium equivalent at rated pressure during factory test). Field leak rates depend on thread engagement, seal condition, and tubing quality.
• Service life: Push-fit fittings are typically rated for thousands of connect/disconnect cycles. Collet seals and O-rings will determine lifecycle; expect service life in years under normal usage but monitor seals if used in contaminated or chemical environments.

Comparison with Alternative Bulkhead Fittings

Below is a comparison of the PMF Bulkhead Female Straight versus other common bulkhead or panel-mount pneumatic fittings. This table highlights the trade-offs you should consider when choosing a fitting for your assembly.

Characteristic	PMF Bulkhead Female Straight (Push-fit)	Brass Compression Bulkhead	Barbed Bulkhead (Hose)
Ease of installation	Very high — one-touch insertion; tool-free tubing removal	Moderate — requires nut tightening and ferrule seating	Moderate — requires hose clamp; more manual effort
Serviceability	Excellent — rapid disconnect for maintenance	Good — disassembly requires tools and reassembly effort	Fair — clamps can be reused; hose may deform over cycles
Vibration tolerance	Good — stainless teeth and seal design resist axial pullout	Very good — metal-to-metal ferrule provides high mechanical retention	Depends on clamp quality — potential for loosening
Leak potential	Low when used with specified tubing and correct installation	Very low if properly installed and torqued	Moderate — relies on clamp integrity and hose condition
Suitability for confined spaces	High — PC hex design enables wrenching in cramped areas	Moderate — requires clearance for nuts and tools	Low — clamps require access
Material options	Polymer body / stainless teeth / NBR seals (standard)	Brass / stainless ferrules / PTFE or NBR seals	Plastic or brass barbed fittings

Benefits and Limitations

Benefits

• Rapid assembly and maintenance: One-touch insertion reduces installation time and simplifies field changes.
• Space-efficient: Bulkhead format with PC hex allows reliable assembly in tight spaces.
• Versatile sizing: Supports common metric and imperial tubing sizes and thread standards, simplifying global procurement and interchangeability.
• Leak-reducing thread coating: Factory-applied sealant reduces assembly variability and minimizes initial thread leaks.
• Reduced inventory complexity: Having both metric and inch tube-friendly models allows designers to use the same family in varied markets.

Limitations

• Fluid compatibility: Rated for compressed air only. Not recommended for liquids, aggressive chemicals, or fuel lines unless alternate seal materials are specified.
• Temperature limit: Standard NBR seals limit continuous use to 60°C. High-temperature environments require alternative seal compounds (e.g., FKM) or different fitting families.
• Over-torque risk: Polymer bodies can crack if subjected to excessive thread torque. Use recommended torque guidelines and appropriate wrenching technique.
• Tubing quality sensitivity: Push-fit performance depends on tubing OD tolerance and cut quality. Improperly cut tubing may reduce retention force or increase leak risk.

Installation and Maintenance Guide

Following best practices during installation and maintenance will extend the life of your PMF Bulkhead Female Straight fittings and keep your pneumatic system running leak-free.

Tools and Preparation

• Sharp tubing cutter for clean, square cuts (avoid scissors or serrated blades that deform the tube).
• Appropriate wrench for hex flats; internal hex driver if access is limited.
• Panel reamer or deburring tool to remove sharp edges from panel cutouts.
• Clean, dry air supply for system purge after assembly (to validate leak-tightness).

Step-by-step Installation

1. Confirm you have selected the correct PMF model for your tubing OD and the thread type of the panel or manifold (R/PT vs NPT).
2. Prepare the panel hole to the specified diameter and deburr both sides. Ensure panel thickness is within the allowable range for thread engagement.
3. Thread the PMF fitting into the panel or manifold by hand until the factory-applied thread sealant engages; then apply the final tightening using the hex flats. Avoid over-torque — typical torque ranges by thread size:
   • 1/8″ threads: 1.5–2.5 Nm
   • 1/4″ threads: 3–5 Nm
   • 1/2″ threads: 8–12 Nm
4. Cut tubing square and clean any swarf or debris. Inspect for circularity and ensure OD is within tolerance.
5. Fully insert the tube into the PMF push-fit until it bottoms out against the internal stop (you will typically feel or hear a click). Do not force the tube beyond the stop.
6. Pressurize the system and perform a leak check (soap solution or electronic leak detector) around the threaded joint and collet area.

Removal and Reuse

To remove tubing, depress the collet sleeve and withdraw the tubing while holding the fitting body. If the fitting needs to be reused after several cycles, inspect the O-ring and collet for wear. Reuse is typically acceptable, but if you observe burrs, cut marks, or reduced retention force, replace worn components or the entire fitting.

Periodic Maintenance

• Inspect fittings during scheduled maintenance for evidence of leaks, cracks, or plastic deformation.
• Replace O-rings if they show signs of hardening, extrusion, or chemical attack.
• Clean collet teeth and the tube entry bore if particulate contamination is present; use compressed air and avoid aggressive solvents that can swell NBR seals.
• Monitor pull-out force during preventive maintenance for critical safety lines — repeated reductions in pull-out strength indicate wear and require replacement.

Ordering, Model Coding, and Selection Guide

PMF models follow a clear coding convention that enables specification by tube diameter and thread type. The format is:

MODEL [φD-T]

Where φD indicates the tube outer diameter and T indicates the thread type/size. Examples:

• PMF 04-1/8 — 4 mm tube OD, R 1/8 thread
• PMF 08-1/8 — 8 mm tube OD, R 1/8 thread
• PMF 12-1/4 — 12 mm tube OD, R 1/4 thread
• PMF 5/32-N1 — 5/32″ tube OD, 1/8″ NPT thread
• PMF 1/2-N4 — 1/2″ tube OD, 1/2″ NPT thread

When specifying, confirm:

• Tube outer diameter and material.
• Thread type (R/PT vs NPT) and nominal size according to your manifold or panel standard.
• Panel thickness and required thread engagement length.
• Operating pressure, temperature, and duty cycle to ensure the standard material set is acceptable or if specialty seals are required.

Design and Safety Recommendations

To ensure safe and durable pneumatic system operation when using PMF fittings, observe the following design recommendations:

• Always design assemblies with a pressure safety margin — do not operate continuously at the maximum rated pressure.
• Adopt filtration and air preparation (FRL units) upstream of critical lines to reduce particulates and moisture that accelerate seal degradation.
• Avoid using the fittings in environments where exposed oils, solvents, or chlorinated hydrocarbons can contact the NBR seals unless alternative seal compounds are specified.
• Provide strain relief where tubing exits enclosures or panels to prevent mechanical loads from acting on the collet.
• Where continuous vibration is present, specify metal-bodied compression fittings or additional retention mechanisms, and periodically inspect pull-out force.

Troubleshooting

Common issues and corrective actions when working with PMF bulkhead fittings:

• Air leak at threaded joint: Verify proper thread engagement and torque. If the threaded joint was broken free, reapply an appropriate thread sealant compatible with the system and retighten within allowable torque.
• Tubing pulls out under pressure: Confirm tubing OD and roundness are within tolerance for the fitting. Inspect collet teeth for wear and clean debris. If tubing material is too soft, consider a stiffer tubing or mechanical clamp behind the fitting.
• Difficulty inserting tubing: Check for burrs on the tube end or obstructions in the fitting. Ensure tubing is cut square and not sealed with adhesives or debris.
• Collet does not release tubing: Depress the collet firmly and simultaneously pull the tubing straight out. If still stuck, depressurize the line, apply lubricant approved for the seal material (if necessary) and gently work the tubing free. Replace worn collet or O-rings.
• Seal swelling or early failure: Review system fluid compatibility. Replace NBR seals with FKM/Viton if operating with incompatible lubricants or elevated temperatures.

Environmental and Regulatory Considerations

When integrating PMF fittings into a product intended for sale, check regulatory restrictions for materials used in your target market (e.g., RoHS for electronic assemblies). Polymer materials should comply with flammability and outgassing requirements for sealed enclosures. For cleanroom or laboratory applications, verify that polymers and seals are acceptable for the required cleanliness and chemical exposure profile.

Conclusion

The PMF Bulkhead Female Straight is a technically robust solution for panel-mounted pneumatic connections where rapid assembly, field serviceability, and space-efficient installation are priorities. Its one-touch push-in mechanism, PC hex design for confined areas, and availability across metric and imperial tubing sizes make it a versatile component for OEMs, machine builders, and maintenance teams. When correctly specified and installed — paying attention to tubing selection, torque limits, and environmental compatibility — PMF fittings deliver reliable, low-leak pneumatic distribution that reduces downtime and simplifies routine maintenance.

For critical or high-temperature applications, request alternative seal materials and confirm component drawings for final dimensional verification prior to production. Always consult the manufacturer’s official datasheet or technical support for model-specific test data, assembly torque specifications, and lifecycle test results.

Appendix: Quick Reference

• Intended fluid: Compressed air only
• Operating pressure: 0–150 PSI (0–990 kPa)
• Vacuum rating: Down to -29.5 in Hg (-750 mm Hg)
• Temperature range: 32–140°F (0–60°C) standard
• Typical seal material: Nitrile (NBR); alternative seals available on request
• Tubing sizes: Metric: 4–16 mm; Inch: 5/32″–1/2″
• Thread types: R/PT (metric tube models), NPT (inch tube models)
• Model code format: PMF [φD-T] (e.g., PMF 08-1/8 or PMF 1/4-N2)

If you require CAD models, certified test reports, or alternate material options (e.g., FKM seals for high-temperature service), contact the PMF product support team or your authorized distributor with the exact model code and application requirements.
