SCF Union Straight Speed Controller — Technical Guide and Application Handbook

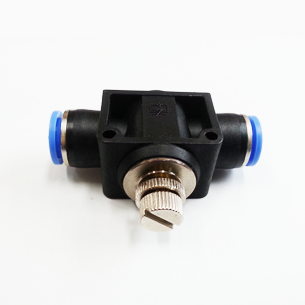

Product: SCF Union Straight Speed Controller

Short description: Compact SCF Union Straight speed controller with an integrated one‑touch fitting, providing fine low‑flow adjustment, compatibility with nylon and urethane tubing, and sealed threads (CHEMK Seal coating) for simple, reliable installation.

Introduction

The SCF Union Straight speed controller is a compact, high‑precision pneumatic flow control component engineered for regulated airflow in industrial automation and pneumatic control systems. It combines a one‑touch push‑in fitting with a metering mechanism that enables very fine adjustment of low flow rates while maintaining stable, repeatable characteristics. Threads are coated with a CHEMK Seal finish for reliable leak resistance during installation. The SCF Union Straight is available in a range of tube outer diameters and thread options to accommodate a broad spectrum of pneumatic piping layouts.

This article provides a detailed technical overview of the SCF Union Straight speed controller, including specifications, materials, dimensions, performance characteristics, installation and maintenance guidance, typical use cases, and comparison with alternative flow control devices. The goal is to equip engineers, maintenance technicians, and system integrators with the knowledge necessary to select, install, and maintain SCF speed controllers for robust, predictable pneumatic motion control.

Technical Overview

Speed controllers in pneumatic systems regulate the rate of movement of actuators (such as cylinders and air motors) by restricting airflow into or out of the actuator. The SCF Union Straight is a union‑style speed controller arranged inline with tubing. Its defining characteristics are:

• One‑touch push‑in fitting: Simplifies connection and disconnection of tubing (nylon and urethane), reducing assembly time and the need for special tools.
• Fine low‑flow control: The metering mechanism is engineered for precise adjustment at low flow rates, enabling smooth, repeatable motion for small cylinders and delicate operations.
• Meter‑in or meter‑out configurations: Offered to match application-specific control strategies. Meter‑in restricts supply air entering the actuator; meter‑out restricts exhaust air leaving the actuator.
• Sealed threads (CHEMK Seal coating): Threads are treated to improve sealability and resistance to leak paths common with repeated assemblies or vibration.
• Range of tubing and thread sizes: Available for tube outer diameters (O.D.) 4, 6, 8, 10, and 12 mm and thread types M5, PT 1/8, 1/4, 3/8, and 1/2, enabling compatibility with common pneumatic architectures.

Functionally, the SCF Union Straight uses an adjustable needle or metering orifice combined with internal flow paths that produce a controlled pressure drop across the device. By changing the orifice opening, the flow rate for a given pressure differential is adjusted. Because the device is designed for low‑flow sensitivity, the metering thread and internal geometry minimize deadband and provide consistent, fine increments of flow change for precise motion control.

Key Specifications

The SCF Union Straight is designed to operate within the following ambient, pressure, and fluid conditions. These are fundamental when sizing and selecting the correct model for your pneumatic system.

Parameter	Value	Notes
Pressure resistance (burst)	10.5 kgf/cm² (1050 kPa)	Maximum short‑term resistance; not for continuous operation at this level.
Maximum working pressure	7.0 kgf/cm² (700 kPa)	Recommended upper limit for continuous operation.
Minimum working pressure	1.0 kgf/cm² (100 kPa)	Minimum pressure necessary to achieve predictable regulation.
Operating & fluid temperature	5 to 60 °C	Standard NBR seals. For higher temps consider FKM/FPM options if available.
Tube outer diameters (O.D.)	4, 6, 8, 10, 12 mm	Push‑in compatible Nylon/Urethane tubing.
Thread / screw options	M5, PT 1/8, 1/4, 3/8, 1/2	Metric / BSPT / NPT equivalents available per model series.
Control methods	Meter‑out or Meter‑in	Model selectable depending on application needs.
Typical model codes	SCF‑04, SCF‑06, SCF‑08, SCF‑10, SCF‑12 (and inch/NPT equivalents)	Example: SCF‑08 corresponds to 8 mm O.D.

Specifications and Dimensions

Below is a representative dimensional table covering SCF models for standard tube O.D. choices. These dimensions are typical for a compact union straight speed controller; actual dimensions may vary slightly by manufacturer and should be confirmed in the product datasheet for final installation planning.

Model (Tube O.D.)	Thread	Body Length (L)	Overall Height (H)	Thread Length (T)	Push‑in Fitting Length (P)	Approx. Weight
SCF‑04 (4 mm)	M5	24 mm	18 mm	6 mm	10 mm	8 g
SCF‑06 (6 mm)	PT 1/8	26 mm	20 mm	7 mm	11 mm	12 g
SCF‑08 (8 mm)	1/4	30 mm	22 mm	8 mm	13 mm	18 g
SCF‑10 (10 mm)	3/8	34 mm	26 mm	10 mm	15 mm	30 g
SCF‑12 (12 mm)	1/2	38 mm	28 mm	12 mm	17 mm	40 g

Notes: Body Length (L) is the distance from the thread face to the rear of the push‑in fitting. Overall Height (H) includes adjustment knob profile. Weight values are nominal and assume standard brass/POM construction. Always verify precise dimensions with vendor datasheets when designing compact manifolds or tight assemblies.

Materials and Build Quality

Material selection affects strength, chemical compatibility, temperature tolerance, vibration resistance, and long‑term reliability. The SCF Union Straight is engineered with a balance of mechanical robustness and cost‑effective manufacturability suitable for industrial automation.

• Body: High‑strength brass or zinc die‑cast alloy with corrosion‑resistant plating (commonly nickel or chrome). Brass provides good machinability, reasonable corrosion resistance, and dimensional stability under repeated torque on the threaded connection.
• Threads & CHEMK Seal coating: Threads are pretreated with a CHEMK Seal coating, a proprietary thread sealant/finish engineered to reduce gas permeation and minor leak paths without the need for separate thread tape in many assembly contexts. This coating improves leak resistance after repeated assembly cycles and offers chemical resistance to common lubricants and coolants.
• Push‑in fitting sleeve and internal parts: Typically constructed from polyacetal (POM) or polybutylene terephthalate (PBT) for excellent wear resistance, dimensional stability, and low friction during tube insertion and removal.
• Seals / O‑rings: Standard models use nitrile (NBR) O‑rings for sealing against the tube and internal passages, suitable for the 5–60 °C operating range. For applications requiring higher temperature or chemical resistance, fluorocarbon (FKM/FPM) or EPDM options may be available.
• Adjustment mechanism: Fine‑pitch metal needle or brass metering screw with knurled synthetic knob for tactile control and low backlash. Internal bearings/bushings are designed to limit wear and provide repeatable setting behavior.

Durability and reliability considerations: The combination of metal body and polymer push‑in elements ensures mechanical strength at the threaded junction while maintaining user‑friendly tube handling. CHEMK Seal thread treatment reduces the risk of microleaks associated with surface imperfections or vibration. The metering internals are engineered to resist clogging from typical compressed air particulates, but a system filter is always recommended upstream.

Key Features

The SCF Union Straight is packed with practical features that are important for technical users and system designers:

• Integrated one‑touch fitting: Fast, tool‑free connection of nylon and urethane tubing; saves assembly time and reduces installation errors.
• Fine low‑flow adjustment: Designed for precise control of small cylinders, microactuators, and delicate gripping operations.
• Meter‑in and meter‑out options: Flexibility to control either the supply or the exhaust side of an actuator for different dynamic responses.
• Multi‑size availability: Covers 4–12 mm tube O.D. and multiple thread types to integrate with various manifold and porting arrangements.
• CHEMK Seal coated threads: Improves installation reliability by minimizing leaks and the need for additional sealing materials.
• Compact form factor: Small footprint suitable for tight mounting spaces, panels, and modular tooling setups.
• Repeatability: Low back‑lash adjustment and stable flow characteristics for consistent cycle‑to‑cycle performance.

Use Cases and Applications

Speed controllers are ubiquitous in systems that require controlled pneumatic motion. The SCF Union Straight’s compact size and fine low‑flow control make it particularly well suited to the following use cases:

1. Industrial automation and pick‑and‑place robots

The SCF is ideal for controlling small pneumatic grippers and short‑stroke cylinders used in pick‑and‑place operations. Meter‑out configuration is commonly used on gripper exhaust ports to provide a damping effect and reduce impact forces at the end of travel.

2. Packaging and assembly machinery

In packaging lines where gentle handling is critical, fine low‑flow control prevents sudden motions that could damage products. The one‑touch fitting enables quick reconfiguration when changing product formats.

3. Medical and laboratory automation

Applications that use small displacement pneumatic actuators — for example, reagent dispensers and valve assemblies — benefit from the SCF’s low flow and high repeatability. The sealed threads and compatibility with clean tubing materials help reduce leak risks in controlled environments.

4. Fixture and tooling in CNC / machine tool operations

Clamping fixtures and workholding devices powered by small cylinders require smooth, adjustable force and speed control. The SCF can be mounted directly on tooling plates to provide localized, easily tunable speed regulation.

5. Prototyping and R&D labs

Compact, quickly reconfigurable pneumatic circuits are common in R&D. One‑touch fittings simplify frequent tubing changes, and the fine control supports experimentation with small actuators.

Meter‑in vs Meter‑out — Practical Guidance

Choosing between meter‑in and meter‑out is critical to achieving the desired dynamic response in your pneumatic circuit. Understanding the functional differences will help you position the SCF correctly:

• Meter‑in (restraining supply): Placed on the pressure (supply) side of the actuator. It controls the flow entering the actuator. Meter‑in typically provides faster stopping with higher impact at the end of stroke because the exhaust path is unrestricted, allowing rapid evacuation of trapped air.
• Meter‑out (restraining exhaust): Placed on the exhaust side. It restricts the air leaving the actuator, creating a back‑pressure that cushions the piston and provides smoother deceleration. Meter‑out is preferred for controlled stopping and for minimizing impact and rebound.

General selection rules:

1. For smooth deceleration and reduced shock: select meter‑out on the cylinder exhaust port.
2. For controlling approach speed where exhaust conditions are not critical: meter‑in on the supply side may suffice.
3. When speed must be controlled in both directions on a double‑acting cylinder, use a pair of controllers configured appropriately on each port (commonly both meter‑out).

Performance Considerations and Flow Calculations

Predicting actual actuator speed requires understanding the compressible flow behavior of air and the pressure/flow relationship across the controller. The SCF acts as an adjustable orifice; thus, the volumetric flow Q through it depends on the pressure differential ΔP and the effective orifice area.

For engineering sizing and rough estimates, the following simplified steps apply:

1. Determine the required actuator piston velocity (mm/s) and calculate the volumetric flow needed: Q_req = Velocity × Piston Area.
2. Estimate the available pressure differential ΔP across the speed controller (upstream supply minus downstream pressure in the actuator chamber during motion).
3. Using empirical flow charts or manufacturer Cv/flow curves (if available), select the tube size and model that provides the required flow at the expected ΔP.

If manufacturer flow coefficients (Cv or Kv) are not supplied, use bench testing with the actual actuator, supply pressure, and expected load. The SCF is specifically designed for reproducible low flows; small changes in knob position produce predictable changes in actuator speed.

Comparison with Similar Products

To assist selection, the SCF Union Straight is compared with common alternatives: standard inline speed controllers, needle valves, and flow controls with one‑way check valves. The table below highlights practical differences.

Feature	SCF Union Straight	Standard Inline Speed Controller	Needle Valve	Flow Control with Check Valve
Tube connection	One‑touch push‑in (nylon/urethane)	Often push‑in or threaded	Threaded fittings required	Push‑in or threaded
Low‑flow adjustability	High — designed for fine adjustments	Medium	High but takes tools and is slower to adjust	High with directional control (check valve)
Meter‑in/meter‑out available	Yes	Sometimes	No (just an orifice)	Yes (by design)
Installation speed	Fast	Moderate	Slow	Moderate
Space footprint	Compact	Varies	Relatively larger	Varies
Leak resistance	Improved (CHEMK Seal threads)	Depends on design	Requires sealing tape/compound	Depends on design
Ideal for	Small actuator speed control, frequent reconfiguration	General speed control	Laboratory or precise tuning where tools are acceptable	Applications requiring one‑way bypass (fast return)

Benefits and Limitations

An objective examination of the SCF Union Straight highlights both its strengths and constraints. Understanding these will help you apply it effectively and avoid mismatch with application requirements.

Benefits

• Precision low‑flow control: Engineered for fine adjustment of small and delicate actuators.
• Compact and modular: Small footprint facilitates close mounting to cylinders and integration into tight layouts.
• Ease of use: One‑touch tubing makes installation and maintenance fast and tool‑free.
• Reliable sealing: CHEMK Seal coated threads reduce dependence on additional thread sealants and lower leak probability.
• Flexible selection: Multiple tube sizes and thread options allow easy integration into existing systems.

Limitations

• Flow capacity: Designed primarily for low to moderate flows. For high‑flow actuator control, a larger inline flow control or proportional regulator may be required.
• Temperature limitations: Standard seals limit use to 5–60 °C. Higher or lower temperature applications require alternative seal materials.
• Contaminant sensitivity: Like all fine metering devices, performance can be affected by particulates and condensate; adequate filtration and air preparation are necessary.
• Not a pressure regulator: The SCF controls flow but does not regulate supply pressure; system pressure control should be addressed upstream with a regulator.

Maintenance and Care Guide

Routine maintenance is essential to retain the SCF’s performance and extend service life. Below are recommended checks and actions for long‑term, professional operation:

1. Filtration and air preparation

Install an appropriate air filter and water separator upstream of the speed controller. For sensitive low‑flow applications, use a 5 μm or finer particulate filter and drain condensate frequently. Contaminants are the primary cause of degraded metering performance.

2. Inspection schedule

• Weekly: Visual inspection for obvious leaks, damaged tubing, or loose fittings.
• Monthly: Check adjustment knob operation for smoothness and absence of binding; confirm repeatability by running an actuator through a test cycle.
• Quarterly: Perform a leak test and inspect O‑rings and push‑in sleeve for wear or plastic deformation; replace if necessary.

3. Cleaning

If the controller is suspected of having internal contamination, remove it from the system and blow out the internal passages with dry, filtered air at low pressure. Avoid solvents that can attack polymer components or CHEMK Seal finishes. If deeper cleaning is required, disassemble according to manufacturer instructions and clean parts with isopropyl alcohol or a mild detergent solution, then dry thoroughly.

4. O‑ring replacement

Replace O‑rings that show cuts, hardening, or permanent deformation. Use the same material type as supplied (typically NBR) unless the system requires a different compound. Keep a small stock of recommended O‑ring sizes for field maintenance.

5. Reassembly and torque

When reinstalling, ensure threads are clean and mating surfaces undamaged. The CHEMK Seal coating reduces the need for additional sealant; however, if manual thread sealing is required for specific applications, use compatible sealants that will not degrade the CHEMK layer. Tighten threaded connections to recommended torque ranges (see the general guidance below), avoiding over‑torque that can deform seals or damage threads.

Thread Type	Recommended Torque Range	Notes
M5	0.6 — 1.0 N·m	Small threads; hand‑tighten then torque to spec.
PT 1/8	1.5 — 2.5 N·m	PT (BSPT) threads require careful sealing; CHEMK Seal improves reliability.
1/4	3 — 5 N·m	Standard 1/4 in ports. Use wrench on flats if present.
3/8	6 — 8 N·m	Medium size. Avoid over‑tightening aluminum ports.
1/2	10 — 12 N·m	Largest common size for this family; use calibrated torque wrench.

Note: Torque values above are provided as general guidance. Always follow the manufacturer’s datasheet and assembly instructions for the specific model and port material used.

Troubleshooting Guide

Here are common symptoms, probable causes, and corrective actions for field troubleshooting.

Symptom	Probable Cause	Corrective Action
Actuator moves erratically	Contaminant in metering orifice or inconsistent supply pressure	Check upstream filter, perform blow‑out cleaning; verify supply regulator stability.
Excessive leakage at threads	Damaged thread, insufficient sealing, or worn CHEMK coating	Inspect threads and reapply compatible sealant if required; replace fitting if damaged.
Adjustment knob stiff or stuck	Debris ingress or corrosion	Remove and clean knob/shaft; lubricate with compatible silicone grease; replace if corroded.
Loss of flow control precision	Worn or damaged needle seat; degraded O‑rings	Replace internal metering element or rebuild with OEM parts.
Tube pulls out of fitting	Damaged or worn collet/push‑in sleeve or incorrect tube O.D.	Inspect and replace sleeve/collet; ensure correct tube diameter and full insertion depth.

Selection and Sizing Checklist

Before specifying the SCF Union Straight for a circuit, validate the following items:

1. Confirm the actuator displaced volume and required speed to determine required flow rate.
2. Determine maximum and minimum supply pressures and select a controller model compatible with that range.
3. Choose meter‑in or meter‑out orientation based on desired dynamic response (cushioning vs approach speed).
4. Select appropriate tube O.D. and thread type to match tubing and porting in your assembly.
5. Check operating temperature and chemical exposure; request alternate seal materials if outside 5–60 °C or if aggressive lubricants are used.
6. Plan for filtration and air preparation upstream (recommended 5 μm filter and pressure regulator).

Installation Best Practices

Follow these practical steps for a reliable installation:

1. Prepare tubings: cut tubing squarely and remove burrs or chips. Use a tubing cutter rather than a knife for clean cuts.
2. Inspect push‑in fitting: verify the collet and sealing surfaces are free from debris and damage.
3. Insert tubing fully: push the tubing into the fitting until it seats against the internal stop. Pull back gently to confirm engagement.
4. Thread engagement: hand‑start threads to prevent cross‑threading. Tighten to the recommended torque using a calibrated wrench.
5. Verify orientation: ensure correct meter‑in/meter‑out orientation before applying pressure to the system.
6. Pressure test: apply pressure gradually and perform a leak test (soap solution, ultrasonic detector, or pressure decay method).

Environmental and Safety Considerations

When integrating the SCF into systems, consider environmental factors that can impact longevity and safety:

• Condensation and moisture: Water in compressed air accelerates corrosion and contaminant buildup. Use appropriate dryers and separators.
• Chemical exposure: Avoid abrasive or solvent environments that can degrade polymer parts or CHEMK Seal finish. Confirm chemical compatibility with vendor if in doubt.
• Vibration: High vibration areas may require thread lock or redesigned mounting to avoid loosening; CHEMK Seal improves joint reliability but mechanical support is still recommended for tubing.
• Thermal cycling: Repeated high/low temperature cycles can accelerate seal degradation; select higher grade elastomers for such environments.

Purchasing and Model Examples

Model numbers commonly reflect the tube O.D. and thread size. Examples include:

• SCF‑04‑M5 — 4 mm tube O.D., M5 threaded port, meter‑out
• SCF‑06‑PT1/8 — 6 mm tube O.D., PT 1/8 port, meter‑in
• SCF‑08‑1/4 — 8 mm tube O.D., 1/4 in port, meter‑out
• SCF‑10‑3/8 — 10 mm tube O.D., 3/8 in port, meter‑in
• SCF‑12‑1/2 — 12 mm tube O.D., 1/2 in port, meter‑out

Verify exact suffix conventions and options (e.g., seal material, knob style, scale markings) with the vendor’s product catalog.

Practical Examples and Case Studies

Below are two representative scenarios illustrating how the SCF Union Straight is employed in practice.

Case Study 1: Precision Gripper Damping in an Electronics Assembly Line

A contract electronics assembler needed to reduce the impact of a pneumatic gripper on fragile PCBs during pickup. The gripper used small dual‑acting cylinders with low displacement and required smooth deceleration to avoid board deflection.

Solution: Two SCF‑06 units (6 mm tube O.D., meter‑out) were installed on the exhaust ports of the gripper cylinders. Fine‑pitch adjustments provided by the SCF allowed the technicians to dial in a slow, repeatable deceleration without compromising cycle time. The one‑touch fittings simplified maintenance when changing gripper tooling between production batches.

Case Study 2: Compact Fixture Speed Control in a CNC Toolchanger

A machine tool manufacturer used micro cylinders to clamp lightweight fixtures on a toolchanger carousel where space was at a premium. The speed of clamps needed to be controlled to ensure accurate placement during high‑speed tool changes.

Solution: SCF‑04 controllers (4 mm) were mounted directly on the tooling plate adjacent to each clamp. The compact footprint reduced tubing length and pressure loss. CHEMK Seal threads ensured reliable performance despite frequent assembly and disassembly for servicing.

Conclusion

The SCF Union Straight speed controller is a technically robust, compact solution for precise flow regulation in pneumatic systems requiring fine low‑flow adjustment and fast, reliable installation. Its integrated one‑touch fitting, multiple tube and thread size options, and CHEMK Seal‑coated threads make it especially suited to modern industrial automation where reconfiguration speed, repeatability, and leak prevention are priorities.

Engineers should consider the SCF when their application demands:

• Precise, repeatable control of small actuators
• Compact mounting and localized speed control
• Frequent reconfiguration or maintenance requiring rapid tube handling
• Enhanced sealing performance at threaded joints

For successful deployment, pair the SCF with proper air preparation (filtration and regulation), select the correct meter orientation (meter‑in vs meter‑out), and follow the recommended installation and maintenance practices. When used appropriately, the SCF Union Straight can deliver predictable motion control, reduced machine wear, and improved product quality across a wide range of pneumatic applications.

If you require detailed CAD models, manufacturer flow curves, or custom seal material options for elevated temperature or aggressive media, consult the product datasheet or your supplier’s technical support to obtain model‑specific performance data and dimensional drawings.
