STB Brass Silencer — Technical Guide and Application Handbook

Product: STB Brass Silencer (STB series)

Short description: Brass silencer with a sintered-metal filter (STB series). Durable at high temperature and pressure, impact resistant and suitable for welding or soldering; designed for industrial gas and liquid handling applications.

Introduction

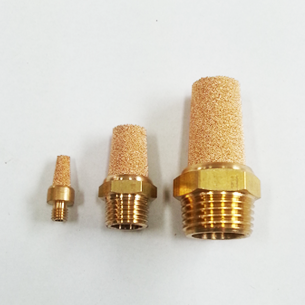

The STB Brass Silencer is a high-performance, compact muffler and filtration element designed for industrial gas and liquid handling systems. Combining a robust brass housing with a precision sintered-metal filter element, the STB series provides reliable particulate retention, effective noise attenuation and mechanical resilience in demanding environments. Available in a range of thread sizes from M5 to 1″, the STB family is intended for pneumatic exhausts, vents, fittings, instrument drains and other applications where controlled venting and inline filtration are required.

This technical guide provides a comprehensive overview of the STB Brass Silencer, including detailed specifications, materials and manufacturing descriptions, performance characteristics, application guidance, comparisons with alternative silencer types, maintenance best practices and practical selection criteria. The content is written for engineers, procurement specialists and maintenance professionals who evaluate and specify silencers and inline breather/vent filters for industrial systems.

Technical Overview

The STB Brass Silencer integrates two primary components: a brass housing and a sintered-metal filter element. The sintered element is formed by compacting and sintering spherical metal powder that has been sorted to controlled particle-size distributions. The powder particles partially fuse during sintering, creating a three-dimensional network of interconnected pores whose size distribution determines both filtration performance (particulate retention) and fluidic resistance.

Key functional objectives of the STB silencer include:

• Controlled diffusion of gas or liquid exhaust to reduce audible noise at the point of discharge.
• Retention of particulates and aerosols from vented streams to protect downstream equipment and reduce contamination of the immediate environment.
• Mechanical robustness to tolerate pressure pulses, shock loading and elevated temperatures typically encountered in industrial systems.
• Compatibility with permanent joining methods such as soldering and welding due to the metallic construction of both element and housing.

Noise attenuation is achieved by a combination of flow throttling through the sintered matrix and diffusion/dispersion of the exhaust jet by the porous structure. Filtration effectiveness depends on pore size distribution and element thickness; STB elements are manufactured to a controlled porosity to balance pressure drop, filtration efficiency and acoustic performance for typical pneumatic and small-bore fluid applications.

Manufacturing Principles — Sintered-Metal Elements

The sintered element uses spherical metal powder (typically stainless steel grades such as 316 or 304 when stainless mesh is used, or brass-compatible alloys where required). The production steps are:

1. Particle sorting and grading to establish a consistent particle size distribution (PSD) that determines mean pore size and porosity.
2. Powder compaction in a die to the target green density and geometry.
3. Sintering under controlled atmosphere (vacuum or inert gas) to create metallurgical bonds while preserving an interconnected pore network.
4. Post-sinter treatments such as sizing, threading, and cleaning to remove residual contaminants and ensure dimensional tolerance.

Control of PSD, compaction pressure and sintering profile allows predictable control over permeability (Darcy permeability), pressure drop versus flow rate and particle-capture threshold. These parameters allow the STB silencer to be engineered to meet specific application constraints such as maximum permissible pressure drop, acoustic attenuation targets and particulate capture sizes.

Specifications and Dimensions

The following table presents typical dimensional and performance parameters for the STB series. Values are representative and should be validated in final selection with the manufacturer’s published datasheets for the specific model and thread standard (BSPP/BSPT/NPT/Metric). The models listed correspond to commonly ordered sizes: STB-M5, STB-1/8, STB-1/4, STB-3/8, STB-1/2, STB-3/4 and STB-1.

Model	Thread (Nominal)	Overall Length (mm)	Housing OD (mm)	Thread Length (mm)	Effective Porous Area (mm²)	Nominal Filtration Rating (µm)	Typical Cv (air)	Max Pressure (bar / psi)	Max Continuous Temp (°C)	Weight (g)
STB-M5	M5 x 0.8 (metric)	18	7	5	32	5 – 40	0.02	16 bar / 232 psi	200	5
STB-1/8	1/8″ BSP/NPT	20	9	6	48	5 – 40	0.04	16 bar / 232 psi	200	8
STB-1/4	1/4″ BSP/NPT	24	12	8	85	5 – 40	0.10	16 bar / 232 psi	200	14
STB-3/8	3/8″ BSP/NPT	28	15	9	115	5 – 40	0.18	16 bar / 232 psi	200	22
STB-1/2	1/2″ BSP/NPT	35	20	11	200	5 – 40	0.35	16 bar / 232 psi	200	40
STB-3/4	3/4″ BSP/NPT	42	28	13	360	5 – 40	0.9	16 bar / 232 psi	200	70
STB-1	1″ BSP/NPT	50	34	16	520	5 – 40	1.6	16 bar / 232 psi	200	110

Notes on table parameters: Nominal filtration rating indicates the typical range of micron sizes available for sintered elements. The Cv values are indicative for air at 20 °C and are calculated assuming the porous path and element porosity shown; actual Cv depends on selected porosity grade, inlet pressure and gas composition. Maximum pressure and temperature are conservative values for standard brass housings with stainless sintered elements; consult manufacturer if higher pressures, elevated temperatures or special alloys are required.

Materials and Build Quality

The STB series is engineered for long service life and field reliability. Core materials and construction features are:

• Housing: Machined brass (standard UNS C360/UNS C464 or equivalent), turned and threaded to tolerance. Brass was selected for its combination of machinability, thermal conductivity, corrosion resistance in many industrial atmospheres, and compatibility with soldering/welding processes. For service in aggressive or chloride-bearing environments, dezincification-resistant (DZR) brass or alternative alloys may be specified.
• Sintered element: Sintered metal typically of stainless steel powder (AISI 316 or 304 depending on corrosion resistance requirements) formed as a plug or cylindrical insert. The element is press-fit or mechanically retained within the brass housing and, in some variants, can be brazed or soldered in place.
• Bonding/joining: The metallic construction permits permanent joining via silver solder, brazing or local welding operations during final assembly or when integrating into welded fittings. Where thermal joining is employed, process controls are required to protect the sintered element from thermal damage; manufacturers typically recommend using low-melt brazes and controlled heat cycles.
• Surface finish: External surfaces are machined and deburred; internal fluid paths are cleaned and, where specified, passivated. Thread profiles conform to the selected standard (metric, BSP, or NPT) with appropriate sealing practice (PTFE tape, thread sealant or gasket depending on installation).
• Quality control: Each sintered element is inspected for dimensional tolerance, porosity distribution and pressure integrity. Typical QC tests include helium leak testing, flow-through pressure-drop characterization and optical/SEM inspection of sample elements for pore structure analysis.

Design and material selection target durability under cyclic pressure loading, thermal excursions and mechanical shock. The sintered element is inherently robust: compared to polymer or fibrous media, sintered metal can sustain higher temperatures, resist mechanical erosion and tolerate repeated cleaning cycles without rapid loss of structural integrity.

Key Features

The STB Brass Silencer offers a set of features tailored to industrial and instrument applications:

• Sintered-metal filtration: Controlled pore structure for repeatable particulate retention and aerosol capture across a specified micron range.
• Acoustic attenuation: Diffusion-based noise reduction for vent and exhaust lines; typical attenuation values depend on pore size, flow rate and pressure differential.
• High mechanical resistance: Suitable for pressure pulsing and impact loads common to pneumatic systems.
• Temperature resilience: Metallic construction supports continuous operation to approximately 200 °C for standard brass; higher-temperature sintered elements are available when paired with alternative housings.
• Weldable/solderable: Metallic interface allows secure joining by soldering, brazing or localized welding — useful when considering integration into manifolds or welded assemblies.
• Multiple thread sizes and standards: Models from M5 through 1″ cover small instrument ports to larger vent fittings; offered in BSPP/BSPT/NPT/metric thread forms.
• Serviceability: Replaceable elements in certain configurations; cleaning and reconditioning options extend service life compared to single-use polymer types.
• Corrosion-resistant sinter option: Stainless-steel sintered elements improve resistance to corrosion and chemical attack compared with plain brass-only constructions.

Use Cases and Practical Applications

The STB series is suited for a wide array of industrial and instrumentation scenarios. Representative applications include:

• Pneumatic exhaust ports: Attachment to exhaust outlets on valves, actuators and cylinders to reduce noise and capture lubricant mist or condensed aerosols.
• Breather vents and reservoirs: Installation on hydraulic tanks, fluid reservoirs and gearboxes where controlled air exchange and particulate exclusion are required.
• Instrument drains and vents: Use with pressure regulators, gauges and monitoring equipment where a small, threaded silencer prevents contamination ingress and noise emission.
• Process vents: Point-of-use vents on chemical process lines where particulate capture at the vent minimizes airborne contamination.
• Safety relief discharge damping: On pressure-relief or safety valves for low-magnitude relief where acoustic attenuation and particulate capture are desired (verify relief sizing and certification requirements prior to use).
• Gas sampling and venting lines: Filtration of sample exhausts prior to laboratory or ambient release.
• Misting/lubricant control: Retention of oil mist from pneumatic components to reduce environmental contamination and maintain clean working areas.

Selection for a given use-case must account for flow rates, allowable pressure drop, temperature and the corrosivity of the media. Typical industrial selection procedure includes matching the Cv/flow capacity of the chosen STB model to the expected exhaust flow and ensuring that the element micron rating is sufficient to intercept the particulate sizes of concern.

Performance Characteristics — Filtration, Flow and Acoustic Behavior

This section describes how key parameters interact and what to expect in typical installations.

Filtration Efficiency

Filtration performance for sintered-metal elements is determined primarily by the pore-size distribution and element thickness. Sintered elements are commonly specified with nominal ratings in the range 5–40 µm for general-purpose vent filtration. A finer pore size increases particulate capture efficiency but at the expense of higher pressure drop and potentially reduced acoustic attenuation (finer pores reduce throughput and increase the proportion of flow that is diffused through the porous media rather than exiting as a coherent jet).

For aerosol and mist collection, selection of a 5–10 µm grade is common. For bulk particulate exclusion and noise attenuation where pressure drop must be minimized, 20–40 µm grades are typical.

Pressure Drop and Flow Considerations

Pressure drop across the silencer is a function of the element permeability, porous area and flow velocity. Designers should consider:

• Matching the silencer Cv to expected exhaust flow (including transients) to avoid undesired back pressure on valves or actuators.
• Using larger thread sizes (e.g., 1/2″, 3/4″, 1″) for higher continuous vent flows to limit differential pressure.
• If installed downstream of pulsed exhausts, verifying element fatigue resistance to repeated pressure cycling.

Example flow guidance: with a 1/4″ STB at a 10 µm grade, expect Cv ≈ 0.10—suitable for intermittent small-bore vents and instrument exhausts. For sustained vent flows exceeding several standard liters per second, size up to 1/2″ or 1″ models to maintain acceptable pressure loss.

Acoustic Attenuation

Acoustic attenuation depends on pore size, element thickness, fluid properties and flow regime. Porous silencers typically attenuate the high-frequency components of exhaust noise effectively because the porous media breaks up coherent jet structures and dissipates energy through viscous friction in pores. Typical attenuation ranges from 6–25 dB subject to the particular installation and flow conditions. Lower attenuation is expected at high-flow, high-pressure exhausts where jet noise dominates and a small inline silencer cannot dissipate the total acoustic energy.

For critical acoustic performance, combine STB silencers with downstream silencing enclosures or use staged silencing strategies where a porous element handles particulate control and a secondary resonant muffler addresses tonal components.

Comparison with Similar Products

Comparative selection often involves balancing cost, performance and environmental resistance. The table below contrasts the STB Brass Silencer with two typical alternatives: polymer/felt silencers and full stainless-steel sintered silencers.

Attribute	STB Brass Silencer	Polymer/Felt Silencer	Stainless-Steel Sintered Silencer
Material	Brass housing + stainless sintered element (standard)	Plastic housing + felt or sintered polymer	Stainless housing + stainless sintered element
Max Temp	~200 °C (standard brass)	40–120 °C depending on polymer	300–600 °C (depending on grade)
Max Pressure	~16 bar (232 psi) typical	Low to moderate; often <10 bar	High; 25 bar and higher possible
Corrosion Resistance	Good in many environments; DZR option for chloride exposure	Variable; susceptible to solvent attack and UV	Excellent; ideal for aggressive/chemical environments
Weld/Solder Capability	Yes (brass allows brazing/soldering)	No	Yes (weldable stainless)
Durability & Mechanical Shock	High	Medium to low	Very high
Typical Cost	Medium	Low	High
Replaceability	Element replaceable in some variants	Often replaceable	Either replaceable or full replacement

Summary of comparison:

• STB Brass Silencers combine the moderate cost and solderability of brass with the performance of sintered filtration — a good compromise for many industrial uses.
• Polymer/felt silencers are cost-effective for low-temperature, low-pressure applications but lack long-term durability and welding capability.
• Full stainless-steel silencers maximize corrosion resistance and temperature capability but at higher cost and different joining requirements (welding vs. soldering).

Benefits and Limitations

Balanced technical evaluation of STB Brass Silencer strengths and constraints helps proper specification:

Benefits

• Robust construction: Metallic housing and sintered element resist impact and pressure cycling better than polymer options.
• Solderable/weldable: Integration into welded assemblies or permanent connections is straightforward.
• Temperature tolerance: Suitable for elevated-temperature exhausts typical of pneumatic and many fluid systems.
• Repeatable filtration: Engineered porosity offers consistent particulate control and predictable pressure drop.
• Serviceability: Elements can often be cleaned and reinstalled, extending life and lowering lifecycle cost.
• Acoustic and particulate dual function: Controls both noise and contaminants simultaneously.

Limitations

• Corrosion sensitivity of brass: In certain chemical environments (chloride-bearing, ammonia), brass can be susceptible to dezincification — DZR or alternative alloys may be necessary.
• Temperature ceiling limited by housing: Although sintered elements can tolerate very high temperatures, the brass housing sets a conservative continuous service limit (~200 °C).
• Pressure drop trade-off: Fine micron ratings increase pressure drop and may be unsuitable for high-flow applications unless upsized.
• Not a solution for high-volume acoustic control: For large relief vents or silencers that must eliminate low-frequency tonal noise, supplemental acoustic strategies are required.
• Permanence of sintered media: While cleanable, sintered elements can require replacement when heavily fouled or chemically attacked; re-sintering is not a field option.

Installation, Sizing and Selection Guidelines

Correct selection and installation ensure the STB silencer performs as intended. Follow these practical guidelines:

1. Identify the operating fluid: Determine whether the medium is air, inert gas, steam, oil mist, water vapor or chemical vapors. Verify compatibility of brass housing and sintered element material with the medium.
2. Calculate maximum and continuous flow rates: Include transient pulse flow (actuator exhausts) and steady-state ventilation. Convert volumetric flow into Cv requirements to match the silencer model. Use manufacturer Cv curves when available.
3. Determine allowable pressure drop: Establish the maximum permissible back pressure on the device upstream of the silencer. Choose a model that keeps ∆P within limits at expected flows.
4. Select micron rating: Choose finer pore sizes for aerosol/mist control and coarser for bulk particulate and low ∆P. Consider 5–10 µm for mist capture, 20–40 µm for general venting and acoustic attenuation.
5. Consider environmental exposures: For chloride-rich atmospheres or prolonged outdoor exposure, specify DZR brass or stainless steel housings and 316 sinter elements.
6. Installation orientation: Most STB silencers are orientation-insensitive but for liquid-laden streams position to avoid pooling inside the element, and provide drainage if condensation is expected.
7. Thread sealing: Use appropriate thread sealing technique (PTFE tape, anaerobic sealant or gasket) depending on thread standard and application pressure. Avoid over-tightening which can deform the housing.
8. Safety & regulations: For venting of hazardous gases, verify applicable local regulations; the STB silencer may alter release characteristics and must not be used where backpressure impacts safety relief valve certification without re-evaluation.

Maintenance and Care Guide

Proper care extends element life and maintains silencer performance. Maintenance intervals depend on contaminant load and operating conditions but follow these standard practices:

Routine Inspection

• Visual inspection monthly or as part of preventive maintenance to detect external damage, corrosion or blockage.
• Measure differential pressure across the silencer if instrumentation is available to detect progressive clogging.
• Listen for changes in acoustic signature. A sudden increase in outlet noise may indicate internal clogging or element damage.

Cleaning Procedures

Cleaning method depends on type of contaminant and element material. Recommended steps:

1. Remove the silencer from the port following safe isolation procedures.
2. Where allowed, disassemble to remove the sintered element (if the model supports serviceability). Follow manufacturer disassembly instructions to avoid element damage.
3. For oil and lubricant deposits: degrease with an appropriate solvent (e.g., isopropyl alcohol, mineral spirits) and follow with ultrasonic cleaning in a solvent-compatible bath if available.
4. For particulate loading: use compressed air blow-through from the upstream side (low-pressure) or gradually increase pressure from the clean side to back-flush particles. Use gentle pressure to avoid damaging the pore structure.
5. For scale or chemical deposits: immersion in a compatible mild acidic or alkaline solution (per manufacturer guidance) can loosen deposits; rinse thoroughly and dry.
6. Drying: bake at moderate temperature (80–120 °C) in a clean oven to evaporate residual cleaning fluids; avoid exceeding housing temperature limits.
7. Re-assembly: confirm the element is seated correctly, threads are clean, and any sealing method is reapplied per instructions.

Cleaning Frequency and Life Expectancy

Cleaning frequency depends on particulate mass load and operational duty cycle:

• Light-duty pneumatic exhausts: inspection and cleaning every 6–12 months.
• Moderate-duty or oil-laden systems: inspection and cleaning every 3 months.
• Heavy contamination or process vents: more frequent checks and spare element provisioning.

With regular cleaning and under non-corrosive conditions, a sintered element can remain serviceable for years. Replace the element when pressure-drop at acceptable flow exceeds practical levels, when pore blockage cannot be recovered by cleaning, or when corrosion/damage to the sinter structure is observed.

Handling and Storage

• Store spare silencers and elements in a clean, dry environment away from corrosive gases or salt-laden air.
• Protect thread profiles with caps or packaging to prevent mechanical damage prior to installation.
• Avoid exposure to strong ammonia or highly chlorinated atmospheres for extended periods if using standard brass housings.

Safety and Compliance Considerations

When incorporating STB silencers into systems, observe these safety points:

• Confirm that the use of any silencer does not interfere with safety relief devices’ certification. Adding back pressure or significant flow restriction to a pressure-relief discharge path can alter valve performance.
• For venting combustible or toxic gases, ensure that added filtration does not promote hazardous accumulation or change dispersion characteristics; consult safety assessments and regulatory guidance.
• When welding or soldering the silencer into assemblies, avoid heat exposure that could alter the sintered element microstructure — coordinate thermal work sequences and use heat sinks or localized heating methods where possible.
• When used with steam or hot condensable vapors, expect accelerated fouling and plan cleanability accordingly.

Ordering Options and Customization

Manufacturers typically offer common variants of the STB series and can provide custom modifications to meet specific application demands. Common options include:

• Thread standard and gender (BSPP, BSPT, NPT, metric male/female).
• Housing alloy (standard brass, DZR brass, or stainless steel for aggressive service).
• Sintered element material (stainless 316/304, nickel, bronze) and micron grade (custom pore sizes).
• Element retention method (press-fit, brazed, or removable cartridge style).
• Special treatments such as passivation, plating or protective coatings for external corrosion resistance.
• Pre-assembled subassemblies for welded manifolds or integrated housings.

Practical Examples and Selection Scenarios

To illustrate typical selection workflows, consider two real-world scenarios:

Example 1 — Pneumatic Actuator Exhaust

Application: Cylinder exhaust in automated packaging line. Intermittent pulses, typical exhaust pressure 6 bar, nominal flow pulses of 80 L/min (1.33 L/s or ~2.83 SCFM) per cycle.

Selection steps:

1. Calculate Cv: For intermittent pulses and modest total air volume, a 1/4″ STB has Cv ≈ 0.10 and will produce an acceptable pressure drop for short pulses. If multiple cylinders exhaust simultaneously, consider 1/2″ model.
2. Micron rating: 10 µm recommended to capture oil mist from lubricated actuators.
3. Material: standard brass housing with 316 stainless sinter is acceptable for indoor pneumatic systems.

Example 2 — Hydraulic Reservoir Breather

Application: Hydraulic reservoir breathers on mobile equipment exposed to outdoor conditions and salt spray. Continuous low-flow air exchange required during thermal cycling.

Selection steps:

1. Material: Select DZR brass or full stainless housing to avoid dezincification and corrosion from salt-laden air.
2. Size: 3/4″ STB or 1″ STB to ensure low pressure drop during continuous breathing.
3. Micron rating: 20–40 µm for general particulate exclusion while minimizing pressure drop.
4. Installation: Provide a protective muffler cap or shield to limit spray ingress and enable regular inspection.

Frequently Asked Technical Questions (FAQ)

Q: Can the STB silencer be used on steam lines?

A: Sintered-metal elements tolerate high temperatures, but the brass housing limits continuous use to approximately 200 °C. For steam lines above that temperature or for condensate-prone service, select a stainless-housing variant and verify element compatibility.

Q: Is the sintered element replaceable in the STB models?

A: Some STB variants are designed with removable cartridges for field replacement; other versions are permanently assembled and replaced as a whole. Confirm the configuration when ordering.

Q: How does pore size relate to pressure drop?

A: Smaller pore sizes (finer micron ratings) reduce effective permeability, increasing flow resistance and therefore pressure drop for a given flow. The relationship is nonlinear and depends on pore tortuosity, porosity and element thickness; manufacturers provide ∆P vs. flow curves for specific grades.

Q: Are STB silencers ATEX/UL certified?

A: Certification depends on model and manufacturer testing. For use in potentially explosive atmospheres or regulated industries, request certified models or documentation (ATEX, IECEx, UL) as required for your jurisdiction.

Conclusion

The STB Brass Silencer is a technically robust, versatile component for managing noise and particulate release at vent and exhaust ports across a broad range of industrial applications. Its sintered-metal element provides consistent filtration performance and durability, while the brass housing enables convenient joining and integration into assemblies via soldering or brazing. With models spanning M5 through 1″, the series accommodates instrument-level vents up to substantial reservoir breathers. Proper selection requires attention to thread standard, expected flow rates, allowable pressure drop, operating temperature and environmental exposure.

Advantages of the STB series include mechanical resilience, serviceability, and the ability to control both acoustic and particulate emissions in a compact, metal-bodied package. Limitations are primarily linked to the material constraints of brass under aggressive chemical exposure and the pressure drop trade-offs associated with finer filtration grades. For high-temperature or aggressively corrosive conditions, alternative materials and housings are available.

When specifying the STB Brass Silencer, consult detailed manufacturer datasheets and Cv curves, select the appropriate sintered grade for filtration and acoustic goals, and establish a maintenance plan to ensure long-term performance. Properly applied, STB silencers reduce noise, limit particulate emissions and extend the cleanliness and reliability of pneumatic and fluid handling systems.

For procurement and engineering assistance: Provide expected flow rates, working pressures, operating temperature range, nature of process fluid and installation orientation so the supplier can recommend the optimum STB model and sintered element grade.
